IR LED, range up 40 m



Bullet IP Camera

NVIP-6DN5021H/IRH-1P

Key features
  • Resolution: 6 MPX
  • D/N function - IR cut filter
  • Lens: varifocal, f=3 ~ 12 mm/F1.5
  • microSD card support
  • Min. Illumination from 0.005 lx (0 lx, IR on)
  • IR LED, range up to 40 m

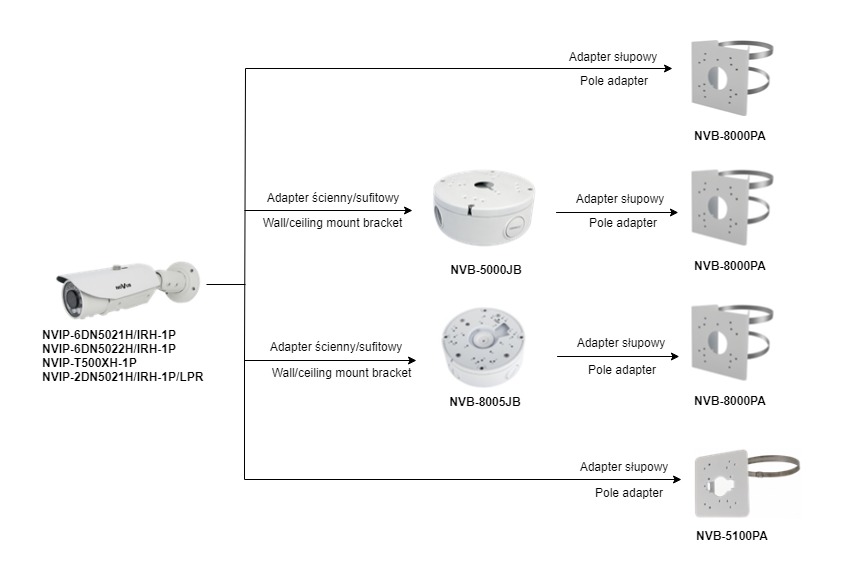

Compatibility
Functions
Functionalities
SD Card slot

The camera equipped with an SD card slot (up to 128GB) allows local recording of video material, so it is resistant to possible interference in the transmission of data between the camera and the recorder. Playback and export of saved material can be done from the level of the web browser.

NMS Compatible

NMS software (Novus Management System) is an advanced platform for managing video monitoring system. NMS can combine different standards of CCTV: Analog, AHD, IP, and at the same time is a software with a high degree of flexibility, finding its application in both small and large and distributed installations

PoE

Power over Ethernet - the technology allows you to power the IP camera directly from the recorder, without the need for additional power devices.

ONVIF standard

The Onvif standard allows for basic compatibility between devices from different manufacturers and brands. The camera + recorder set supporting the Onvif standard guarantees that the camera will be found, added, recorded and will transmit information about motion detection.

Image Sensor

6 MPX CMOS sensor 1/1.8” SONY Exmor R STARVIS

Number of Effective Pixels

3072 (H) x 2048 (V)

Min. Illumination

0.01 lx/F1.5 - color mode,

0.005 lx/F1.5 - color mode (DSS),

0 lx (IR on) - B/W mode

Electronic Shutter

auto/manual: 1/5 s ~ 1/20000 s

Digital Slow Shutter (DSS)

up to 1/5 s

Wide Dynamic Range (WDR)

yes

Digital Noise Reduction (DNR)

2D, 3D

Defog Function (F-DNR)

yes

Lens
Lens Type

varifocal auto iris DC, f=3 ~ 12 mm/F1.5

Day/Night
Switching Type

mechanical IR cut filter

Switching Mode

auto, manual, time

Switching Level Adjustment

yes

Switching Schedule

yes

Visible Light Sensor

yes

Network
Stream Resolution

3072 x 2048, 2592 x 1944, 2688 x 1520, 2304 x 1296, 2048 x 1536 (QXGA), 1920 x 1080 (Full HD), 1280 x 720 (HD), 720 x 576 (D1), 704 x 480, 640 x 480 (VGA)

Frame Rate

30 fps for 3072 x 2048 and lower resolutions

Multistreaming Mode

2 streams

Video/Audio Compression

H.264, MJPEG/G.711, RAW_PCM

Number of Simultaneous Connections

max. 8

Bandwidth

25 Mb/s in total

Network Protocols Support

HTTP, TCP/IP, IPv4, UDP, HTTPS, Multicast, DHCP, NTP, RTSP, PPPoE

ONVIF Protocol Support

Profile S (ONVIF2.2)

Camera Configuration

from Internet Explorer, Firefox, Chrome, Opera browser

languages: Polish, English, Russian, and others

Compatible Software

NMS

Other functions
Privacy Zones

5

Motion Detection

yes

Region of interest (ROI)

5

Image Processing

180˚ image rotation, sharpening, mirror effect

Prealarm/Postalarm

up to 5 MB/up to 86400 s

System Reaction to Alarm Events

e-mail with attachment, saving file on SD card

IR LED
LED Number

17

Range

40 m

Angle

90°

Interfaces
Video Output

BNC, 1.0 Vp-p, 75 Ohm - maintenance only

Audio Input/Output

1 x RCA/1 x RCA

Alarm Input/Output

1 (NO/NC)/1

Network Interface

1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Memory Card Slot

SD - capacity up to 64GB

Installation parameters
Dimensions (mm)

with bracket: 110 (Ф) x 377 (L)

Weight

1.7 kg

Degree of Protection

IP 66 (details in the user’s manual)

Enclosure

aluminium, white, fully cable managed wall mount bracket in-set included

Power Supply

PoE, 12 VDC

Power Consumption

6 W,

15 W (IR and heater on)

Operating Temperature

-30°C ~ 60°C

Built-in Heater/Fan

yes/no

File name Description
CE_NVIP_6DN5021_5022H_IRH_1P _EN.pdf
Certificate
91.7 KB
NVIP-6DN5021H_IRH_1P_SHORT_EN_PL.pdf
User manual
6.62 MB
NVIP-5000_series_FULL_EN_PL_1.1.pdf
User manual
6.57 MB
SD_Driver_0.62.zip
Software
2.62 MB
NVIP-5000Player.7z
Software
887.49 KB
Compatibility_table_tabela_kompatyb._IP_Camera_NVR_01.10.2018.xlsxCompatibility table

123.45 KB
Accessories Compatibility Tables_Tabele kompatybilnosci akcesoriow 24.01.2019.xlsxCompatibility table

4.26 MB
