Classic IP Camera
Vandal Proof IP Starlight Camera
All cameras of the 4000 series have an autonomous P2P functionality that works with the RxCamView application. The camera which we provide Internet access can connect directly to the application using the QR code (via the P2P server). The solution is useful for large / dispersed objects where we only need live view.
The 4000 series recorders, in conjunction with the 4000 (former 2000) series cameras, beyond the basic configuration of parameters such as contrast or brightness, allow for much more advanced interference with the camera settings. From the recorder interface, we are able to:
- set the corridor mode and turn 180/270 degrees
- set the focal length with the camera with the motorzoome lens
- set the image correction (BLC, HLC, WDR, etc.)
- set the operating mode (day / night / automatic)
- all video parameters (fps, resolution, bitrate etc.)
The mobile application allows remote monitoring of a system based on 4000 (former 2000) series cameras supporting P2P functionality, via a smartphone with Android or iOS. Basic camera configuration as well as PTZ control are available from the phone. The application allows you to connect to cameras via P2P using the QR code, without the need for additional network configuration.
A function that performs the counting of a defined line crossing, distinguishing the direction of a moving object. The function can be used to create statistics of visits to any public facilities.
- counting the number of visitors to the selected store depending on days / week
The function allows to trigger a local alarm, send an e-mail, activate the relay, or send a push notification to the mobile application after the object has crossed the previously defined line (maximum 4 lines per one camera).
- perimeter protection of the object
The function allows to trigger a local alarm, send an e-mail, control the relay, or send a push notification to the mobile application after violating the limits of the defined detection zone (up to 4 detection zones).
- perimeter protection of the object
- protection of strategically important objects
Lens with the possibility of remote focal and focus adjustment using a recorder, web browser, NMS software or even a mobile application.
The common name of the SONY brand image transducer, which thanks to the use of a larger and more efficient sensor allows you to display a color image at very low light levels, where cameras with ordinary transducers would go into black and white mode, losing the detail and color information .
NMS software (Novus Management System) is an advanced platform for managing video monitoring system. NMS can combine different standards of CCTV: Analog, AHD, IP, and at the same time is a software with a high degree of flexibility, finding its application in both small and large and distributed installations
(Video Content Analysis) refers to advanced image analysis functions, such as the disappearance of an object from the scene or reading license plates, but also to other frequently used functions, such as line crossing or camera sabotage.
Power over Ethernet - the technology allows you to power the IP camera directly from the recorder, without the need for additional power devices.
The Onvif standard allows for basic compatibility between devices from different manufacturers and brands. The camera + recorder set supporting the Onvif standard guarantees that the camera will be found, added, recorded and will transmit information about motion detection.
Improved coding standard allowing even more efficient use of the transmission bandwidth. The mechanism is based on the use of frame elements virtualization, which allows for the partial prediction of the recorded image, thus the overall packet traffic in the network is reduced.
The function allows to trigger a local alarm, send an e-mail, control the relay, or send a push notification to the mobile application after detecting in the observed zone the detection of the object left for a specified time.
- leaving luggage at train stations, metro stations
- places with a parking ban
The function allows to trigger a local alarm, send an e-mail, activate the relay, or send a push notification to the mobile application after detecting the disappearance of the object in the designated detection zone.
- protection of museum exhibits
The function allows to trigger a local alarm, send an e-mail, activate the relay, or send a push notification to the mobile application after:
- covering the camera
- changing the scene of the camera (physical interference in the assembly)
- changing the focus settings (with cameras manually
adjustable focal length)
2 MPX CMOS sensor 1/2.8” SONY STARVIS
|Number of Effective Pixels|
1945 (H) x 1097 (V)
0.01 lx/F1.6 - color mode,
0 lx (IR on) - B/W mode
auto/manual: 1/5 s ~ 1/20000 s
|Digital Slow Shutter (DSS)|
up to 1/5 s
|Wide Dynamic Range (WDR)|
yes (double scan sensor), 120dB
|Digital Noise Reduction (DNR)|
|Defog Function (F-DNR)|
|Back Light Compensation (BLC)|
motor-zoom, f=5.0 ~ 50 mm/F1.6
zoom trigger, day/night mode trigger, manual trigger
mechanical IR cut filter
1 ~ 36 s
|Visible Light Sensor|
1920 x 1080 (Full HD), 1280 x 960, 1280 x 720 (HD), 640 x 480 (VGA), 320 x 240 (QVGA)
60 fps for each resolution
H.264, H.264+, H.265, H.265+/G.711, G.726, ADPCM
|Number of Simultaneous Connections|
32 Mb/s in total
|Network Protocols Support|
HTTP, TCP/IP, IPv4, FTP, DHCP, DNS, DDNS, NTP, RTSP, RTP, UPnP, SMTP, P2P
|ONVIF Protocol Support|
Profile S (ONVIF 2.6)
from Internet Explorer browser
languages: Polish, English, Russian, and others
RxCamView (iPhone, Android)
|Region of interest (ROI)|
|Video Content Analysis (VCA)|
tamper, abandoned object, object disappearance, line cross, zone entrance, face detection, pedestrian detection, cross counting, face recognition
180˚ image rotation, corridor mode, vertical flip, horizontal flip
up to 5 s/up to 300 s
|System Reaction to Alarm Events|
e-mail with attachment, saving file on FTP server, alarm output activation, saving in the cloud storage
yes (software support)
BNC, 1.0 Vp-p, 75 Ohm
1 x RCA/1 x RCA
1 (NO/NC)/1 relay type
1 x Ethernet - RJ-45 interface, 10/100 Mbit/s
with bracket: 90 (W) x 90 (H) x 300 (L)
|Degree of Protection|
IP 66 (details in the user’s manual)
aluminium, white, fully cable managed wall mount bracket in-set included
PoE, 12 VDC
TVS 4000 V
9 W (IR on)
-35°C ~ 60°C
max. 95%, relative (non-condensing)
|IP4000 series password generator with manual.zip||Software||
|Device Config Tool with manual.zip||Software||

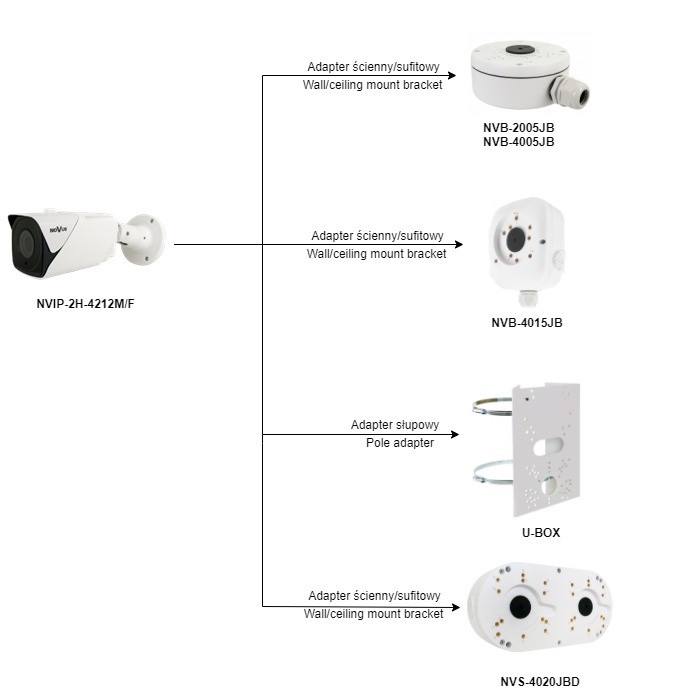

|Accessories Compatibility Tables_Tabele kompatybilnosci akcesoriow 4.11.2019.xlsx||Compatibility table||
|Face_recognition_Installation_tips_wskazowki instalacji_EN_PL_v1.1.pdf||User manual||
|IP2000_ 4000 cameras security recommendations_rekomendacje bezpieczenstwa_EN_PL_v1.0.pdf||Others||
