IR LED, range up to 100 m



Speed Dome IP Camera

NVIP-3SD-6200/20

Archival product
Key features
  • Resolution: 3 MPX
  • Lens: motorized varifocal, AI and AF function, optical zoom 20x, f=5.5 ~ 110 mm/F1.6 ~ 3.5
  • D/N function - IR cut filter
  • PTZ control via coaxial cable
  • Min. Illumination from 4 lx (0 lx, IR on)
  • IR LED, range up to 100 m (depends on current optical zoom value)
Functions
Functionalities
Configuration of cameras from the NVR

The recorders in combination with the cameras of the same series, apart from the configuration of basic parameters such as contrast or brightness, allow for a much more advanced interference with the camera settings. Depending on the functionality of the camera, from the recorder level it is possible, among others:
- changing the network settings of the camera
- stream parameters setting
- setting the zoom and focus in a camera with a motor zoom lens
- enabling and configuring the image analysis function


Watch video
SuperLive Plus

The mobile application allows for remote monitoring of a system based on 6000 (old 3000) series cameras, via a smartphone with Android or iOS. Basic camera configuration as well as PTZ control are available from the phone. Connection of the camera with the application does not require the use of a recorder (local network, port forwarding)

Watch video
SD Card slot

The camera equipped with an SD card slot allows local recording of video material, so it is resistant to possible interference in the transmission of data between the camera and the recorder. Playback and export of saved material can be done from the level of the web browser.

NMS Compatible

Novus Management System VSS software is an advanced platform for managing video monitoring system. Novus Management System VSS can combine different standards of CCTV: Analog, AHD, IP, and at the same time is a software with a high degree of flexibility, finding its application in both small and large and distributed installations

Learn more
ONVIF standard

The ONVIF standard allows for basic compatibility between devices from different manufacturers and brands. The camera + recorder set supporting the ONVIF standard guarantees that the camera will be found, added, recorded and will transmit information about motion detection.

H.265

The video encoding standard, which is the successor to the H.264 standard, which allows to save up to 35% of the bandwidth.

IK10

The IK scale is used to determine the degree of protection against equipment impact, including camera casings used in monitoring. The highest level of IK scale is "IK10" means that the camera is resistant to impacts with a strength of 20J, which translates into the equivalent of the fall of the object weighing 5kg from a height of 40cm.

Image Sensor

3 MPX CMOS sensor 1/2.8” SONY

Number of Effective Pixels

2048 (H) x 1536 (V)

Min. Illumination

4.0 lx/F1.6 - color mode,

0 lx (IR on) - B/W mode

S/N Ratio

> 48 dB (AGC off)

Electronic Shutter

auto: 1/25 s ~ 1/10000 s

Wide Dynamic Range (WDR)

yes

Digital Noise Reduction (DNR)

3D

Defog Function (F-DNR)

yes

Lens
Optical Zoom

20x

Lens Type

motorized, auto-iris function, f=5.5 ~ 110 mm/F1.6 ~ F3.5

Auto-focus

zoom trigger, day/night mode trigger

Day/Night
Switching Type

mechanical IR cut filter

Switching Mode

auto, manual, time

Visible Light Sensor

yes

Network
Stream Resolution

2048 x 1536 (QXGA), 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 320 x 240 (QVGA)

Frame Rate

30 fps for 2048 x 1536 (QXGA) and lower resolutions

Multistreaming Mode

3 streams

Video/Audio Compression

H.264, H.265, MJPEG/G.711

Number of Simultaneous Connections

max. 3

Bandwidth

18 Mb/s in total

Network Protocols Support

HTTP, TCP/IP, IPv4, UDP, DHCP, DDNS, NTP, RTSP, PPPoE, SMTP, SSL/TLS

Camera Configuration

from Internet Explorer browser

languages: Polish, English

Compatible Software

NOVUS MANAGEMENT SYSTEM VSS, NVR-6000 Viewer

Mobile applications

SuperLive Plus (iPhone, Android)

PTZ
Preset Commands

235

Tours

8 (up to 16 presets per tour)

Auto-Scans

2

Patterns

4 (max. 180 s for each pattern)

Tilt/Pan Range

0° ~ 93°/360° (continuous)

Pan/Tilt Speed

up to 160°/s (proportional to zoom)

Preset Speed

up to 240°/s

Protocols

Pelco-D, Pelco-P, COAX

Other functions
Access Password

number of characters: 4 numbers

Motion Detection

yes

Image Processing

180˚ image rotation, sharpening, mirror effect

System Reaction to Alarm Events

e-mail with attachment, alarm output activation, HTTP notification, PTZ

Restoring default settings

via web browser, using reset button, via NMS IPTool software

IR LED
LED Number

4

Range

up to 100 m (depends on current optical zoom value)

Angle

up to 45° (depends on current optical zoom value)

Interfaces
Video Output

BNC, 1.0 Vp-p, 75 Ohm - Digital AHD/TVI 1080p

Audio Input/Output

1 x Jack (3.5 mm)/1 x Jack (3.5 mm)

Alarm Input/Output

4 (NO/NC)/1 relay type (max. 12VDC/300mA)

RS-485

yes

Network Interface

1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Memory Card Slot

microSD - capacity up to 64GB

Installation parameters
Dimensions (mm)

208 (Ф) x 317 (H) with bracket: 205 (W) x 470 (H) x 313 (L)

Weight

3.5 kg with bracket: 4.2 kg

Degree of Protection

IP 66 (details in the user’s manual)

Enclosure

aluminium, white, IK10 impact rating, in set: outdoor housing (integrated with the camera), wall mount bracket

Power Supply

24 VDC/24 VAC (100 ~ 230 VAC/24 VDC PSU in-set included)

Surge protection

TVS 4000 V

Power Consumption

15 W (IR illuminator on),

30 W (IR and heater on)

Operating Temperature

-30°C ~ 60°C

Built-in Heater/Fan

yes/yes
File name Description
3000SeriesCompatibility_Tabela kompatybilności Seri 3000 PTZ z NVR-ami.xls
Others
52.5 KB
CE_3DN3520SDIRH2II_EN.pdf
Certificate
378.22 KB
NVIP-3SD-6200_20_short_EN_PL_v1.2.pdf
User manual
3.06 MB
Accessories with cameras compatibility_Kompatybilnosc akcesoriow i kamer_11.04.2024.xlsxCompatibility table
3.63 MB
NVIP-6000_Lista_kart_MicroSD.xlsxOthers
11.87 KB
NVIP-6000_series_FULL_EN_PL_v1.0.pdfUser manual
4.66 MB
NVR, NHDR with IP cameras compatibility_Kompatybilnosc rejestratorow i kamer IP_16.04.2024.xlsxCompatibility table
352.44 KB
Camera's maintenance tips_Wskazowki konserwacji kamer_v1.0.pdfOthers
204.85 KB
PoE standards overview_Porównanie standardów PoE_EN_PL_v1.0.pdfOthers
710.61 KB
IP Tool 6000_1.0.8.9_20240308.exeSoftware
10.98 MB
Accessories

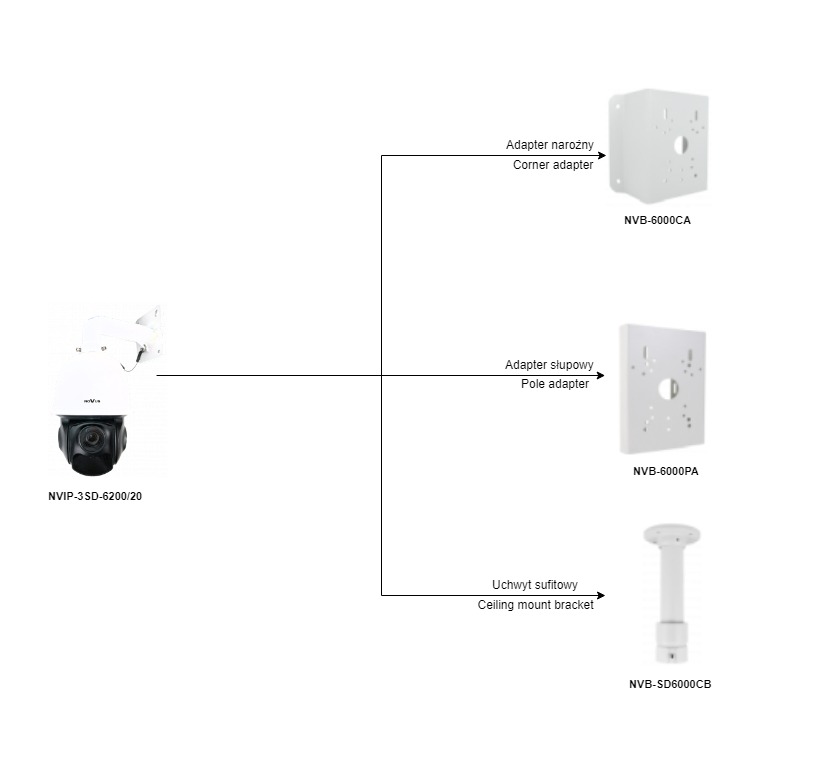

Accessories scheme
