30W IP horn speaker NV-IPS8030/M

Speaker
Speaker type	horn
Maximum sound pressure	120 dB
Frequency response	350 Hz - 8 kHz
Frequency range (±10 dB)	500 Hz - 2 kHz
Audio
Amplifier	30W power, class D
Signal to noise ratio	91 dB
Harmonic distortion	0.1% @1kHz
Network
Audio Compression	OPUS, MP3, G.711, G.722
Network Protocols Support	HTTP, HTTPS, IPv4, UDP, FTP, TFTP, DHCP, DNS
VoIP	number of SIP accounts: 2 SIP protocols support: RFC3261, RFC5630, RFC5389, RFC3550, RFC4566
Speaker configuration	from Edge, Firefox, Chrome, Opera browser languages: Polish, English, and others
Other functions
Security	firewall, Digest authorization for HTTP/RTS, MAC/IP address filtering, force change of default password
System reaction to alarm events	establishing a SIP connection, playback a ringtone, playback of the audio message, push notification
Restoring default settings	via web browser, using reset button
Interfaces
Audio input/output	1 x RCA/- built-in microphone
Alarm Input/Output	1 (NO/NC) / 0
Network Interface	1 x Ethernet - RJ-45 interface, 10/100 Mbit/s
Installation parameters
Dimensions (mm)	284 W x 205 H x 307 L
Weight	1.9 kg
Degree of protection	IP 67 (details in the user’s manual)

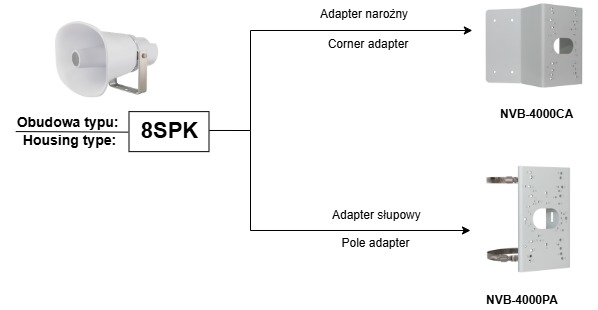

Enclosure	plastic - metal, white, wall mount bracket included enclosure type: 8SPK
Power Supply	12 ~ 24 VDC, PoE+ (IEEE 802.3at, Class 4)
Surge protection	TVS 1000 V
Power Consumption	34 W
Operating Temperature	-30°C ~ 60°C
Humidity	5% - 85%, relative (non-condensing)

Speaker

Speaker type

horn

Maximum sound pressure

120 dB

Frequency response

350 Hz - 8 kHz

Frequency range (±10 dB)

500 Hz - 2 kHz

Audio

Amplifier

30W power, class D

Signal to noise ratio

91 dB

Harmonic distortion

0.1% @1kHz

Network

Audio Compression

OPUS, MP3, G.711, G.722

Network Protocols Support

HTTP, HTTPS, IPv4, UDP, FTP, TFTP, DHCP, DNS

VoIP

number of SIP accounts: 2 SIP protocols support: RFC3261, RFC5630, RFC5389, RFC3550, RFC4566

Speaker configuration

from Edge, Firefox, Chrome, Opera browser languages: Polish, English, and others

Other functions

Security

firewall, Digest authorization for HTTP/RTS, MAC/IP address filtering, force change of default password

System reaction to alarm events

establishing a SIP connection, playback a ringtone, playback of the audio message, push notification

Restoring default settings

via web browser, using reset button

Interfaces

Audio input/output

1 x RCA/-

built-in microphone

Alarm Input/Output

1 (NO/NC) / 0

Network Interface

1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Installation parameters

Dimensions (mm)

284 W x 205 H x 307 L

Weight

1.9 kg

Degree of protection

IP 67 (details in the user’s manual)

Enclosure

plastic - metal, white, wall mount bracket included

enclosure type: 8SPK

Power Supply

12 ~ 24 VDC, PoE+ (IEEE 802.3at, Class 4)

Surge protection

TVS 1000 V

Power Consumption

34 W

Operating Temperature

-30°C ~ 60°C

Humidity

5% - 85%, relative (non-condensing)

File name
NV-IPS8030_M_EN_PL_v1.0.pdf	User manual	1.66 MB
CE_NOVUS_NV_IPS8030M-sig.pdf	Certificate	1.46 MB
Accessories with cameras compatibility_Kompatybilnosc akcesoriow i kamer_17.09.2025.xlsx	Compatibility table	7.76 MB
Camera's maintenance tips_Wskazowki konserwacji kamer_v1.0.pdf	Others	204.85 KB
PoE standards overview_Porównanie standardów PoE_EN_PL_v1.0.pdf	Others	710.61 KB
NmsIPTool_4.0.exe	Software	209.43 MB

File name

Description

NV-IPS8030_M_EN_PL_v1.0.pdf

User manual

1.66 MB

CE_NOVUS_NV_IPS8030M-sig.pdf

Certificate

1.46 MB

Accessories with cameras compatibility_Kompatybilnosc akcesoriow i kamer_17.09.2025.xlsx

Compatibility table

7.76 MB

Camera's maintenance tips_Wskazowki konserwacji kamer_v1.0.pdf

Others

204.85 KB

PoE standards overview_Porównanie standardów PoE_EN_PL_v1.0.pdf

Others

710.61 KB

NmsIPTool_4.0.exe

Software

209.43 MB
