IR LED, range up to 50 m



2 MPX Vandal Proof IP Camera

NVIP-2VE-6232-II

Archival product
Key features
  • Lens: varifocal, f=2.8 ~ 12 mm/F1.4
  • built-in microphone
  • D/N function - IR cut filter
  • Video content analysis
  • microSD card support
  • Min. Illumination: 0.008 lx (0 lx, IR on)
  • IR LED, range up to 50 m
Compatibility
Functions
Description

The camera is dedicated to work with NOVUS 6000 series recorders. Detailed data can be found in the compatibility table available in the DOWNLOADABLE FILES tab.

Functionalities
N-VID6 application

The mobile application allows remote monitoring of the system based on the 6000 series devices, via a smartphone with Android or iOS. Live view, playback, the basic configuration of the devices, PTZ control, PUSH alarms receiving and others are available from the phone. Thanks to P2P feature, network access is very convenient – no public address nor port forwarding are necessary.

SD Card slot

The camera equipped with an SD card slot allows local recording of video material, so it is resistant to possible interference in the transmission of data between the camera and the recorder. Playback and export of saved material can be done from the level of the web browser.

NMS Compatible

Novus Management System VSS software is an advanced platform for managing video monitoring system. Novus Management System VSS can combine different standards of CCTV: Analog, AHD, IP, and at the same time is a software with a high degree of flexibility, finding its application in both small and large and distributed installations

VCA Analysis

VCA (Video Content Analysis) features are a collection of techniques and algorithms that analyze and interpret video to detect threats, anomalies, or unwanted activities. VCA algorithms make it possible to detect and identify objects, analyze the movement of objects, including their tracking, but also allow, for example, face or license plate recognition. In thermal imaging cameras, VCA functions allow for early detection of fires.

The VCA in the cameras can operate automatically, without the need for human intervention, which enables a quick response to emergency situations.

ONVIF standard

The ONVIF standard allows for basic compatibility between devices from different manufacturers and brands. The camera + recorder set supporting the ONVIF standard guarantees that the camera will be found, added, recorded and will transmit information about motion detection.

H.265+

Improved coding standard allowing even more efficient use of the transmission bandwidth. The mechanism is based on the use of frame elements virtualization, which allows for the partial prediction of the recorded image, thus the overall packet traffic in the network is reduced.

IK10

The IK scale is used to determine the degree of protection against equipment impact, including camera casings used in monitoring. The highest level of IK scale is "IK10" means that the camera is resistant to impacts with a strength of 20J, which translates into the equivalent of the fall of the object weighing 5kg from a height of 40cm.

PoE

Power over Ethernet - the technology allows you to power the IP camera directly from the recorder, without the need for additional power devices.

Object Disappearance

The function allows to trigger a local alarm, send an e-mail, activate the relay, or send a push notification to the mobile application after detecting the disappearance of the object in the designated detection zone.
Application example:
- protection of museum exhibits

Intrusion

The function allows to trigger a local alarm, send an e-mail, control the relay, or send a push notification to the mobile application after violating the limits of the defined detection zone (up to 4 detection zones).
Application example:
- perimeter protection of the object
- protection of strategically important objects

Tripwire

The function allows to trigger a local alarm, send an e-mail, activate the relay, or send a push notification to the mobile application after the object has crossed the previously defined line (maximum 4 lines per one camera).
Application example:
- perimeter protection of the object

Image Sensor

2 MPX CMOS sensor 1/2.8” SmartSens

Number of Effective Pixels

1928 (H) x 1088 (V)

Min. Illumination

0.006 lx/F1.4 - color mode,

0 lx (IR on) - B/W mode

Electronic Shutter

auto/manual: 1/3 s ~ 1/100000 s

Digital Slow Shutter (DSS)

up to 1/3 s

Wide Dynamic Range (WDR)

yes

Digital Noise Reduction (DNR)

yes

Highlight Compensation (HLC)

yes

Back Light Compensation (BLC)

yes

Reduction of image flicker (Antiflicker)

yes

Lens
Lens Type

varifocal, f=2.8 ~ 12 mm/F1.4

Day/Night
Switching Type

mechanical IR cut filter

Switching Mode

auto, manual, time

Switching Level Adjustment

yes

Switching Delay

2 ~ 120 s

Switching Schedule

yes

Visible Light Sensor

yes

Network
Stream Resolution

1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 320 x 240 (QVGA)

Frame Rate

30 fps for 1920 x 1080 (Full HD) and lower resolutions

Multistreaming Mode

number of streams: 2

Video/Audio Compression

H.264, H.264+, H.265, H.265+, MJPEG/G.711

Number of Simultaneous Connections

max. 3

Bandwidth

9 Mb/s in total

Network Protocols Support

HTTP, IPv4, IPv4/v6, UDP, HTTPS, FTP, DHCP, DDNS, NTP, RTSP, RTP, UPnP, SNMP, QoS, IEEE 802.1X, PPPoE, SMTP, RTCP

ONVIF Protocol Support

Profile G/S/T

Camera Configuration

from Internet Explorer, Firefox, Chrome, Opera, Safari browser

languages: Polish, English, and others

Compatible Software

NOVUS MANAGEMENT SYSTEM VSS, NOVUS MANAGEMENT SYSTEM AC, N Control 6000

Mobile applications

SuperLive Plus (iPhone, Android)

Video Analytics
Functions

abandoned object, object disappearance, line cross, scene change, intrusion detection

Other functions
Privacy Zones

4 video mask type: single color

Motion Detection

yes

Region of interest (ROI)

8

Image Processing

sharpening, mirror effect, vertical flip, horizontal flip

Prealarm/Postalarm

up to 6 s/up to 120 s

System Reaction to Alarm Events

e-mail, e-mail with attachment, saving file on FTP server, saving file on SD card

Restoring default settings

via web browser, using reset button, via NMS IPTool software

IR LED
LED Number

2

Range

50 m

Smart IR

yes (software support)

Interfaces
Audio Input/Output

1 x Jack (3.5 mm)/-

built-in microphone

Network Interface

1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Memory Card Slot

microSD - capacity up to 256GB

Installation parameters
Dimensions (mm)

112 (Ф) x 100 (H)

Weight

0.7 kg

Degree of Protection

IP 67 (details in the user’s manual)

Enclosure

vandalproof IK10 impact rating aluminium, white or grey

Power Supply

12 VDC, PoE (IEEE 802.3af, Klasa 3)

Surge protection

TVS 4000 V

Power Consumption

3 W,

7.5 W (IR illuminator on)

Operating Temperature

-30°C ~ 60°C

Humidity

max. 95%, relative (non-condensing)

File name Description
NVIP-2VE-6231-II_SHORT_EN_PL_ver1.0.pdf
User manual
3.46 MB
CE_NOVUS_NVIP_2VE_6232_II-sig.pdf
Certificate
1.27 MB

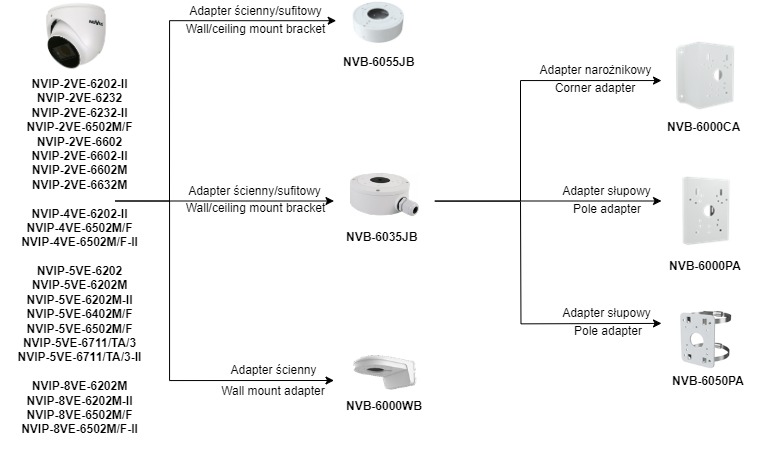

Accessories with cameras compatibility_Kompatybilnosc akcesoriow i kamer_03.09.2024.xlsxCompatibility table

6.49 MB
NVR, NHDR with IP cameras compatibility_Kompatybilnosc rejestratorow i kamer IP_09.09.2024.xlsxCompatibility table

371.48 KB
NmsIPTool_4.0.exeSoftware

209.43 MB
NVIP-6000_series_FULL_EN_PL_v1.0.pdfUser manual

4.66 MB
Camera's maintenance tips_Wskazowki konserwacji kamer_v1.0.pdfOthers

204.85 KB
PoE standards overview_Porównanie standardów PoE_EN_PL_v1.0.pdfOthers

710.61 KB
SDPlayer 1.0.5.6.exeSoftware

10.48 MB
IP Tool 6000_1.0.8.9_20240308.exeSoftware

10.98 MB
VCA_6000VSS_PL Instrukcja konfiguracji i obsługi funkcji analizy obrazu kamer Novus serii 6000 VSS.pdfUser manual

4.24 MB
