Bullet AHD Multistandard Camera NHDC-2H-6302-II

Image Sensor	CMOS sensor 1/2.8” SMARTSENS
Operating mode	AHD 1080p, TVI 1080p, CVI 1080p
Number of Effective Pixels	1928 (H) x 1088 (V)
Resolution	1080p
Min. Illumination	0.005 lx/F1.2 - color mode, 0 lx (IR on) - B/W mode
S/N Ratio	> 52 dB (AGC off)
Electronic Shutter	auto/manual: 1/50 s ~ 1/100000 s
High Light Compensation (HLC)	yes
Back Light Compensation (BLC)	yes
Wide Dynamic Range (WDR)	yes
Digital Noise Reduction (DNR)	2D
Lens
Lens Type	varifocal, f=2.8 ~ 12 mm/F1.2
Day/Night
Mode	day/night switching: mechanical IR cut filter
Switching Mode	auto, manual
Visible Light Sensor	yes
Other functions
OSD	languages: English, others
Image Processing	Defective Pixel Correction (DPC), sharpening
Remote control	Yes (COAX protocol)
IR LED
LED Number	3
Range	50 m
Smart IR	yes (software support)
Interfaces
Video Output	BNC, 1.0 Vp-p, 75 Ohm
Installation parameters
Dimensions (mm)	with bracket: 81 (W) x 81 (H) x 220 (L)
Weight	0.61 kg
Degree of Protection	IP 67 (details in the user’s manual)
Power Supply	12 VDC
Power Consumption	1 W, 4 W (IR illuminator on)
Operating Temperature	-30°C ~ 50°C
Humidity	max. 90%, relative (non-condensing)


Image Sensor

CMOS sensor 1/2.8” SMARTSENS

Operating mode

AHD 1080p, TVI 1080p, CVI 1080p

Number of Effective Pixels

1928 (H) x 1088 (V)

Resolution

1080p

Min. Illumination

0.005 lx/F1.2 - color mode,

0 lx (IR on) - B/W mode

S/N Ratio

> 52 dB (AGC off)

Electronic Shutter

auto/manual: 1/50 s ~ 1/100000 s

High Light Compensation (HLC)

yes

Back Light Compensation (BLC)

yes

Wide Dynamic Range (WDR)

yes

Digital Noise Reduction (DNR)

Lens

Lens Type

varifocal, f=2.8 ~ 12 mm/F1.2

Day/Night

Mode

day/night switching: mechanical IR cut filter

Switching Mode

auto, manual

Visible Light Sensor

yes

Other functions

OSD

languages: English, others

Image Processing

Defective Pixel Correction (DPC), sharpening

Remote control

Yes (COAX protocol)

IR LED

LED Number

Range

50 m

Smart IR

yes (software support)

Interfaces

Video Output

BNC, 1.0 Vp-p, 75 Ohm

Installation parameters

Dimensions (mm)

with bracket: 81 (W) x 81 (H) x 220 (L)

Weight

0.61 kg

Degree of Protection

IP 67 (details in the user’s manual)

Power Supply

12 VDC

Power Consumption

1 W,

4 W (IR illuminator on)

Operating Temperature

-30°C ~ 50°C

Humidity

max. 90%, relative (non-condensing)

File name
CE_NOVUS_NHDC_2H_6302_II-sig (1).pdf	Certificate	1.27 MB
NHDC-2x-6302-II_EN_PL_v1.1.pdf	User manual	1.62 MB

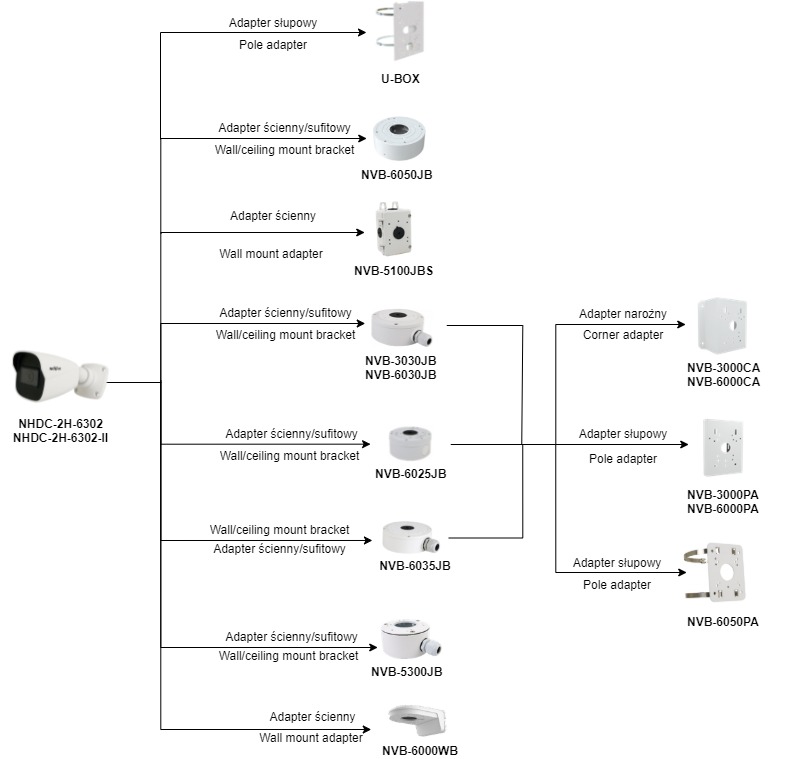

Accessories with cameras compatibility_Kompatybilnosc akcesoriow i kamer_17.09.2025.xlsx	Compatibility table	7.76 MB
Camera's maintenance tips_Wskazowki konserwacji kamer_v1.0.pdf	Others	204.85 KB

File name

Description

CE_NOVUS_NHDC_2H_6302_II-sig (1).pdf

Certificate

1.27 MB

NHDC-2x-6302-II_EN_PL_v1.1.pdf

User manual

1.62 MB

Accessories with cameras compatibility_Kompatybilnosc akcesoriow i kamer_17.09.2025.xlsx

Compatibility table

7.76 MB

Camera's maintenance tips_Wskazowki konserwacji kamer_v1.0.pdf

Others

204.85 KB
