Bullet IP Camera with Motor-zoom Lens

NVIP-4H-8002M

Archival product
Key features
  • Resolution: 4 MPX
  • Lens: motorized, auto-iris and auto-focus function, f=2.7 ~ 12 mm/F1.3
  • D/N function - IR cut filter
  • Video content analysis
  • microSD card support
  • WDR with double scan sensor
  • Min. Illumination from 0.06 lx (0 lx, IR on)
  • IR LED, range up to 30 m
Functions
Functionalities
Motorzoom lens

Lens with the possibility of remote focal and focus adjustment using a recorder, web browser, Novus Management System VSS software or even a mobile application.

SD Card slot

The camera equipped with an SD card slot allows local recording of video material, so it is resistant to possible interference in the transmission of data between the camera and the recorder. Playback and export of saved material can be done from the level of the web browser.

NMS Compatible

Novus Management System VSS software is an advanced platform for managing video monitoring system. Novus Management System VSS can combine different standards of CCTV: Analog, AHD, IP, and at the same time is a software with a high degree of flexibility, finding its application in both small and large and distributed installations

VCA Analysis

VCA (Video Content Analysis) features are a collection of techniques and algorithms that analyze and interpret video to detect threats, anomalies, or unwanted activities. VCA algorithms make it possible to detect and identify objects, analyze the movement of objects, including their tracking, but also allow, for example, face or license plate recognition. In thermal imaging cameras, VCA functions allow for early detection of fires.

The VCA in the cameras can operate automatically, without the need for human intervention, which enables a quick response to emergency situations.

ONVIF standard

The ONVIF standard allows for basic compatibility between devices from different manufacturers and brands. The camera + recorder set supporting the ONVIF standard guarantees that the camera will be found, added, recorded and will transmit information about motion detection.

H.265+

Improved coding standard allowing even more efficient use of the transmission bandwidth. The mechanism is based on the use of frame elements virtualization, which allows for the partial prediction of the recorded image, thus the overall packet traffic in the network is reduced.

PoE

Power over Ethernet - the technology allows you to power the IP camera directly from the recorder, without the need for additional power devices.

Abandoned Object

The function allows to trigger a local alarm, send an e-mail, control the relay, or send a push notification to the mobile application after detecting in the observed zone the detection of the object left for a specified time.
Application example:
- leaving luggage at train stations, metro stations
- places with a parking ban

Object Disappearance

The function allows to trigger a local alarm, send an e-mail, activate the relay, or send a push notification to the mobile application after detecting the disappearance of the object in the designated detection zone.
Application example:
- protection of museum exhibits

Sabotage

The function allows to trigger a local alarm, send an e-mail, activate the relay, or send a push notification to the mobile application after:
- covering the camera
- changing the scene of the camera (physical interference in the assembly)
- changing the focus settings (with cameras manually
adjustable focal length)

Tripwire

The function allows to trigger a local alarm, send an e-mail, activate the relay, or send a push notification to the mobile application after the object has crossed the previously defined line (maximum 4 lines per one camera).
Application example:
- perimeter protection of the object

Image Sensor

4 MPX progresive scan CMOS sensor 1/3” OmniVision

Number of Effective Pixels

2688 (H) x 1520 (V)

Min. Illumination

0.06 lx/F1.3 - color mode,

0 lx (IR on) - B/W mode

Electronic Shutter

auto/manual: 1/5 s ~ 1/20000 s

Digital Slow Shutter (DSS)

up to 1/5 s

Wide Dynamic Range (WDR)

yes (double scan sensor), 120dB

Digital Image Stabilization (DIS)

yes

Digital Noise Reduction (DNR)

2D, 3D

Defog Function (F-DNR)

yes

Highlight Compensation (HLC)

yes

Back Light Compensation (BLC)

yes

Lens
Lens Type

motorized, auto-iris function, f=2.7 ~ 12 mm/F1.3

Auto-focus

zoom trigger, day/night mode trigger, manual trigger

Day/Night
Switching Type

mechanical IR cut filter

Switching Mode

auto, manual, time

Switching Level Adjustment

yes

Switching Delay

0 ~ 180 s

Switching Schedule

yes

Visible Light Sensor

yes

Network
Stream Resolution

2592 x 1520, 2560 x 1440 (QHD), 2304 x 1296, 1920 x 1080 (Full HD), 1280 x 720 (HD), 704 x 576, 640 x 480 (VGA), 640 x 360, 352 x 288 (CIF), 320 x 240 (QVGA)

Frame Rate

30 fps for 2592 x 1520 and lower resolutions

Multistreaming Mode

3 streams

Video/Audio Compression

H.264, H.264 Smart, H.265, H.265 Smart, MJPEG/G.711, RAW_PCM

Number of Simultaneous Connections

max. 8

Bandwidth

21 Mb/s in total

Network Protocols Support

HTTP, TCP/IP, IPv4/v6, UDP, HTTPS, FTP, DHCP, DNS, NTP, RTSP, RTP, UPnP, PPPoE, SMTP, RTCP

Camera Configuration

from Internet Explorer browser

languages: Polish, English, Russian, and others

Compatible Software

NOVUS MANAGEMENT SYSTEM VSS

Other functions
Privacy Zones

4

Motion Detection

yes

Region of interest (ROI)

8

Video Content Analysis (VCA)

tamper, abandoned object, object disappearance, line cross, zone entrance, double line cross, loiter, multi loiter, abnormal speed, converse, illegal parking

Image Processing

180˚ image rotation, sharpening, mirror effect, corridor mode

Prealarm/Postalarm

-/up to 86400 s

System Reaction to Alarm Events

e-mail with attachment, saving file on FTP server, saving file on SD card

IR LED
LED Number

10

Range

30 m

Angle

90°

Interfaces
Video Output

BNC, 1.0 Vp-p, 75 Ohm - maintenance only

Audio Input/Output

1 x RCA/1 x RCA

Network Interface

1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Memory Card Slot

microSD - capacity up to 128GB

Installation parameters
Dimensions (mm)

with bracket: 83 (W) x 80 (H) x 265.5 (L)

Weight

0.85 kg

Degree of Protection

IP 66 (details in the user’s manual)

Enclosure

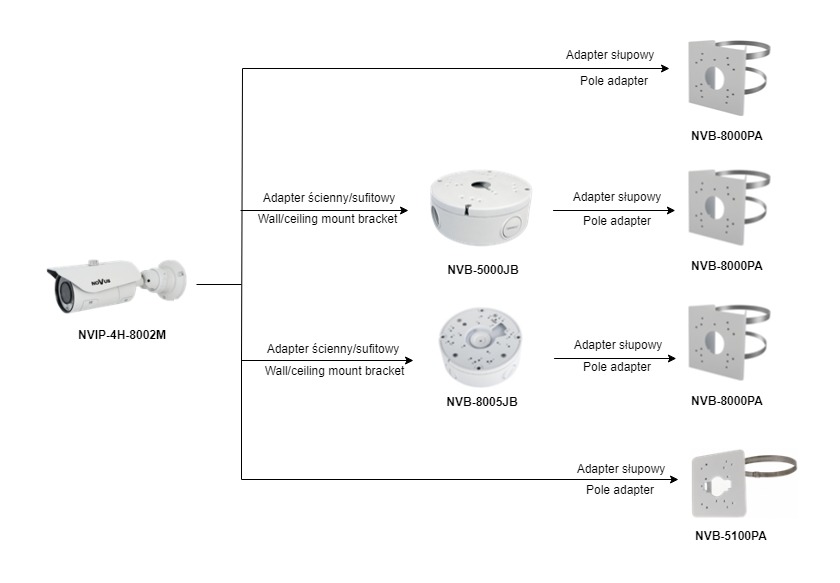

aluminium, white, fully cable managed wall mount bracket in-set included

Power Supply

12 VDC, PoE (IEEE 802.3af, Class 3)

Surge protection

TVS 4000 V

Power Consumption

5 W,

9 W (IR illuminator on),

11.8 W (IR and heater on)

Operating Temperature

-30°C ~ 60°C

Humidity

max. 90%, relative (non-condensing)

Built-in Heater/Fan

yes/no

To use the Video Content Analysis functions it is necessary to reduce the first stream frame rate to the 20 fps.
